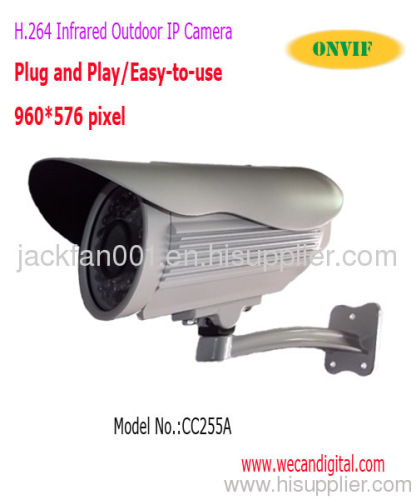

H.264 650TVL CCD Outdoor Infrared IP Camera
| Price: | 50.0~100.0 USD |
| Payment Terms: | T/T |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.1/3" 650 TVL Sony EFFIO CCD Sensor;
2. H.264 Main Profile compression algorithm;
3. 960*576P resolution real-time output;
1. Plug and Play IP Camera,automatic network configuration and P2P connection;
2. 1/3" 650 TVL Sony EFFIO CCD Sensor;
3. H.264 Main Profile compression algorithm;
4. 960*576P resolution real-time output;
5. 36 pcs infrared lights, visual distance over 40m at night;
6. Support ONVIF;
7. Waterproof design;
8. POE optional.
Specifications:
Sensor type: 1/3" 650 TVL Sony EFFIO CCD Sensor
Effective pixel:960*576 pixel
Lenz Port:C/CS mount
Lens: 6mm,8mm,F1.2
Electronic shutter:1/25s-1/100,000s
Lowest luminance:Color: 0.1Lux F1.2,Black&white: 0.01Lux F1.2
Day-night switch mode:Support
Wide dynamics:Support
Infrared Light : 36 pcs infrared lights, visual distance over 40m at night
Video parameter:Saturation,brightness,contrast ratio and color tone can be adjusted by customer end or IE explorer
Video compress:H.264 Main Profile@Level 3.0
Video bit rate:16K-16Mbps, customized
Bit stream type:Compound streams / video stream
Audio compress:G.726
Audio bit rate:8-16kbps
Triple bit streams:Support
Video resolution: PAL:960*576,704*576(4CIF),704*288(2CIF),352*288(CIF),176*144(QCIF)
NTSC:960*480,704*480(4CIF),704*240(2CIF),352*240(CIF),176*120(QCIF)
Video flame rate:PAL:1-25 frames/second,NTSC:1-30 frames/second
Heartbeat mechanism:Support
Password protection:Multi-level protection on password
Intellectual alarm:Mobile detection,video shielding,video loss,network breakdown,abnormality in storage
Basic functions:One-key reset, password protection, watermark technology
Audio input:1 channel
Audio output:1 channel
Network port :1 pc, RJ45 10M/100Mbps self-adaptable Ethernet port
Serial port:1 pc, standard RS485 serial port
OSD:Support
ONVIF:Support
Cell phone monitor:Support
Work Environment:Indoor or Outdoor
Power supply:DC12V/1.0A
POE power supply:Optional
Power consumption:<8W
Working temp:-10 °C ~ + 55 °C
Working humidity:10 ~ 85%
Body dimensions(L*W*H): 200*110*85 mm
Dimensions with bracket(L*W*H): 280*110*180 mm
Weight: 0.87 Kg
